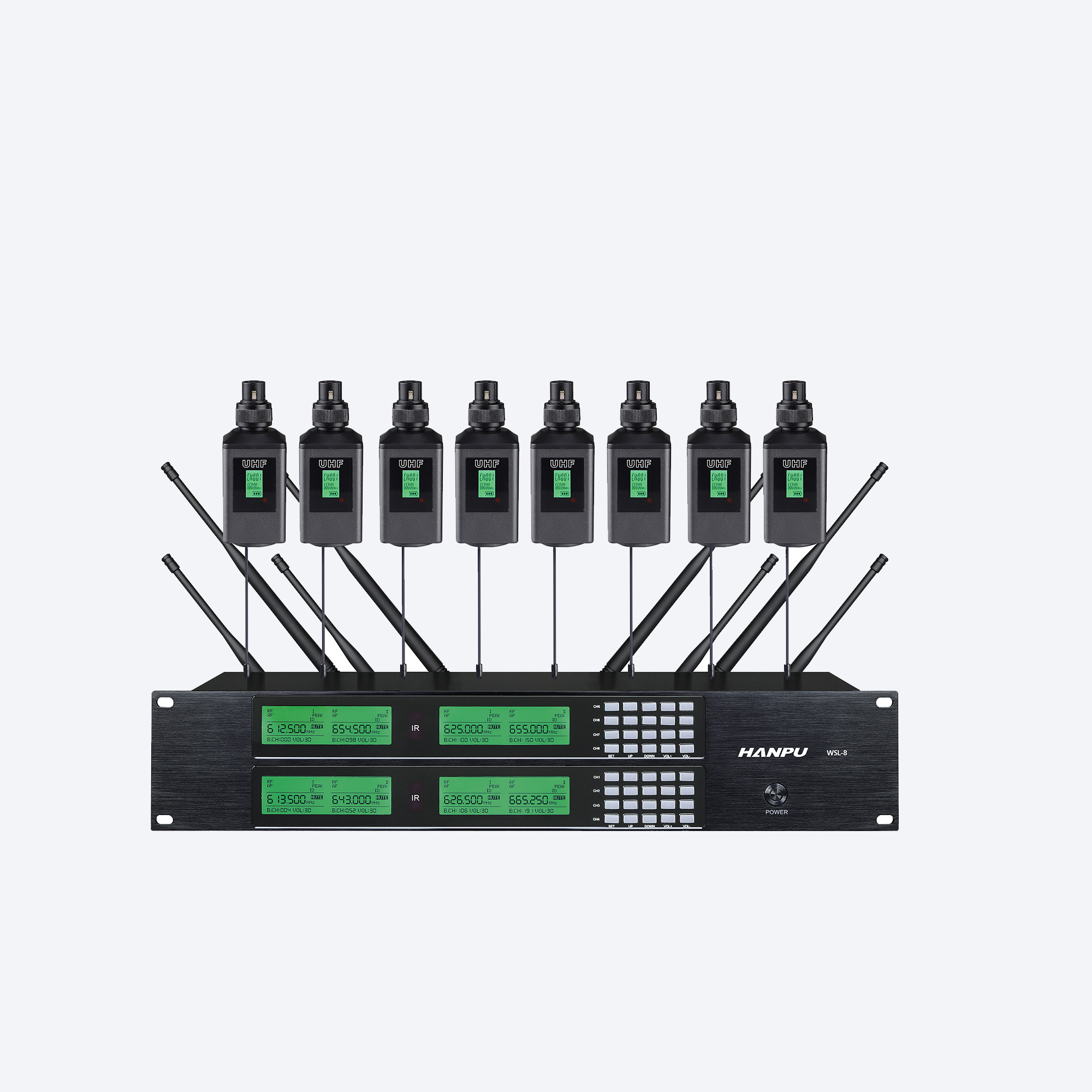

Wireless grenade transmission system

NO.: WSL-4

※ Distortion: ≤ 0.1% ※ Function display method: LCD ※ Battery specification: 2 * 1.5v AA Size ※ Continuation time: 8-20 hours (depending on the type, capacity, and transmission power of the TV)

Series：

Senior engineering conference microphone series & wireless grenade transmission system

Download:

Enquiry Now

hanputydz@163.com

Keywords:

HANPU

Description
Technical specifications
Connect

With the addition of wireless grenades, a wireless transmission system can be implemented, providing power for 48V phantom and other wired microphones.
Wireless grenade: Professional wireless transmission, wired microphone to wireless audio transmission system suitable for 48V phantom powered wired microphones, conference microphones, interview microphones, etc. Effective transmission distance of 50-60 meters, U-band wireless transmission, strong anti-interference ability, and can be received through walls.
Technical parameters of the transmitter
※ Frequency range: 612.5-667.25MHz
※ Receiving method: superheterodyne secondary frequency conversion
※ Adjustable number of channels: 200 channels
※ Channel spacing: 250KHz
※ Adjacent channel suppression: ≥ 70dB
※ Mirror frequency suppression: ≥ 80B
※ Oscillation method: PLL frequency synthesis with phase-locked loop
※ Frequency stability: ± 10ppm
※ Receiving sensitivity: -100dbm~-68dbm adjustable
※ Frequency response: 40-18000Hz
※ Comprehensive signal-to-noise ratio: ≥ 110dB
※ Comprehensive distortion: ≤ 0.1%
※ Audio output: 500MV (6.35 socket mixed output, Karon balanced output)
※ Output impedance: XLR connector 200 Ω 1/4 connector 1K Ω
※ Power specification: DC12V/1A
Receiver specifications and parameters
※ Frequency range: 612.5-667.25MHz
※ Adjustable number of channels: 200 channels
※ Channel spacing: 250KHz
※ Oscillation method: PLL frequency synthesis with phase-locked loop
※ Frequency stability: ± 10ppm
※ Modulation method: FM frequency modulation
※ Harmonic suppression: ≥ 70dB
※ Maximum adjustment range: 75k
※ RF power: 10~30mw
※ Frequency response: 40-18000Hz
Product model: WSL-4
※ Frequency range: 612.5-667.25MHz
※ Receiving method: superheterodyne secondary frequency conversion
※ Adjustable number of channels: 200 channels
※ Channel spacing: 250KHz
※ Adjacent channel suppression: ≥ 70dB
※ Mirror frequency suppression: ≥ 80B
※ Oscillation method: PLL frequency synthesis with phase-locked loop
※ Frequency stability: ± 10ppm
※ Receiving sensitivity: -100dbm~-68dbm adjustable
※ Frequency response: 40-18000Hz
※ Comprehensive signal-to-noise ratio: ≥ 110dB
※ Comprehensive distortion: ≤ 0.1%
※ Audio output: 500MV (6.35 socket mixed output,
Karon balanced output)
※ Output impedance: XLR connector 200 Ω 1/4 connector 1K Ω
※ Power specification: DC12V/1A
Receiver specifications and parameters
※ Frequency range: 612.5-667.25MHz
※ Adjustable number of channels: 200 channels
※ Channel spacing: 250KHz
※ Oscillation method: PLL frequency synthesis with phase-locked loop
※ Frequency stability: ± 10ppm
※ Modulation method: FM frequency modulation
※ Harmonic suppression: ≥ 70dB
※ Maximum adjustment range: 75k
※ RF power: 10~30mw
※ Frequency response: 40-18000Hz
※ Distortion: ≤ 0.1%
※ Function display method: LCD
※ Battery specification: 2 * 1.5v AA Size
※ Continuation time: 8-20 hours (depending on the type, capacity, and transmission power of the TV)

Pre:

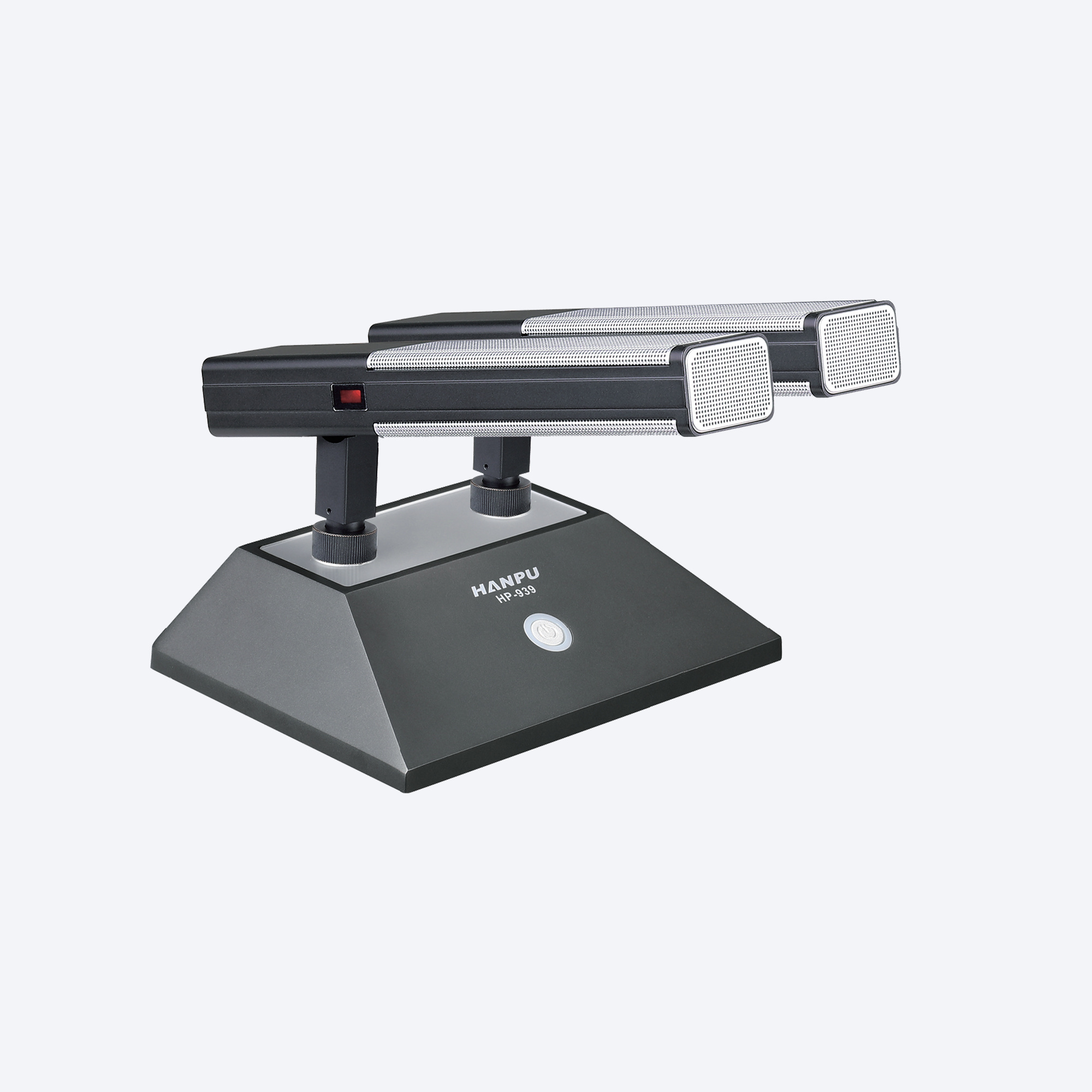

High end government conference speech microphone

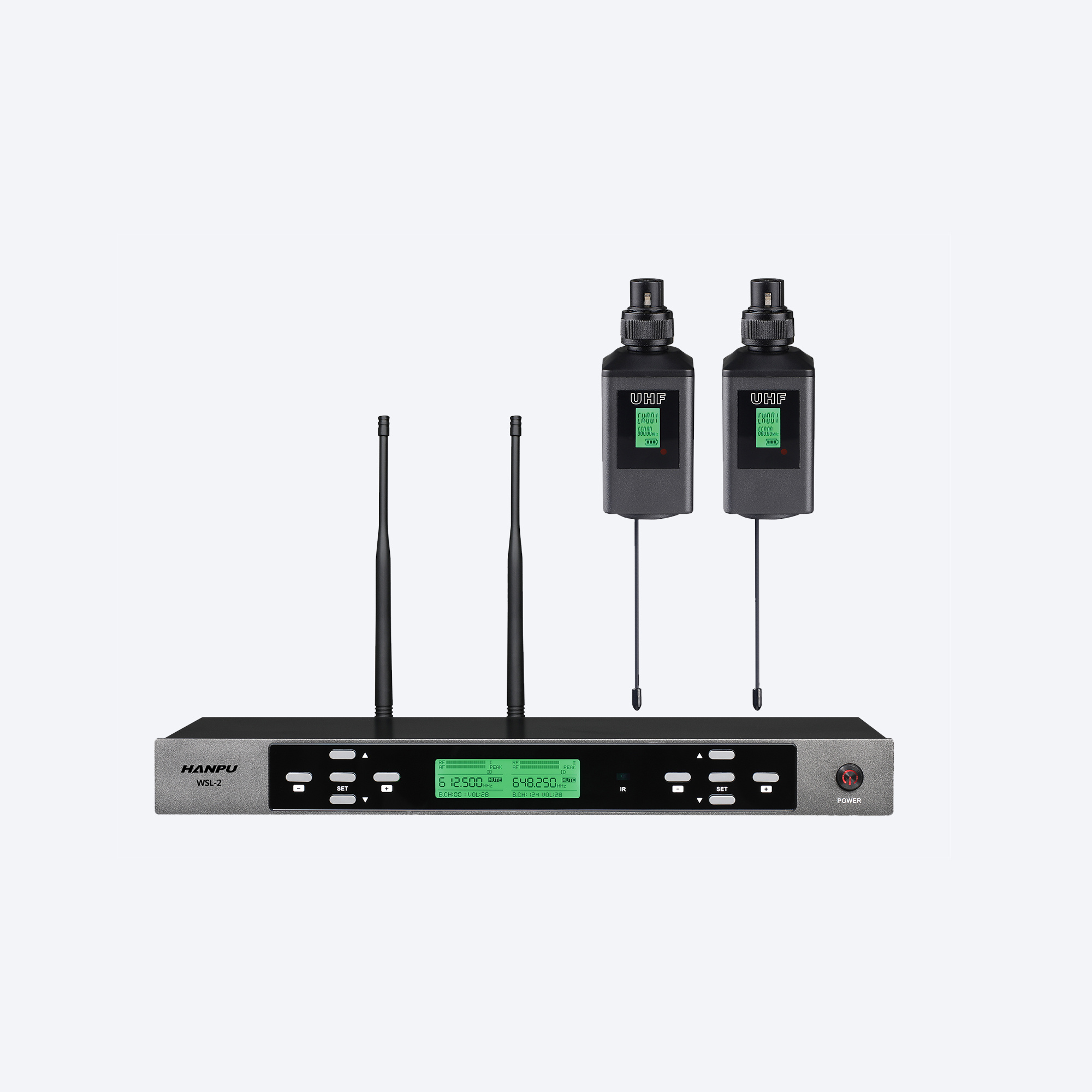

Wireless grenade transmission system
