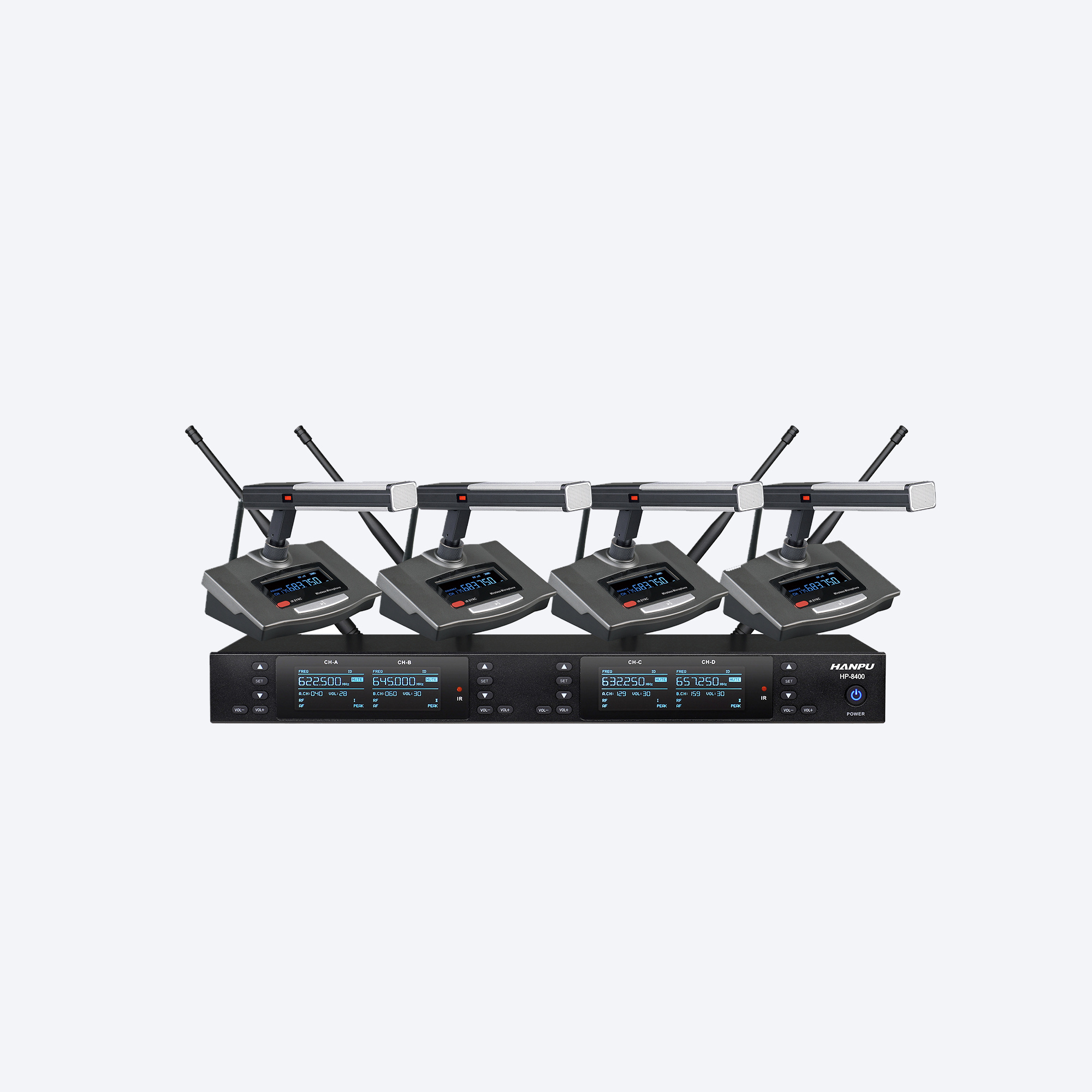

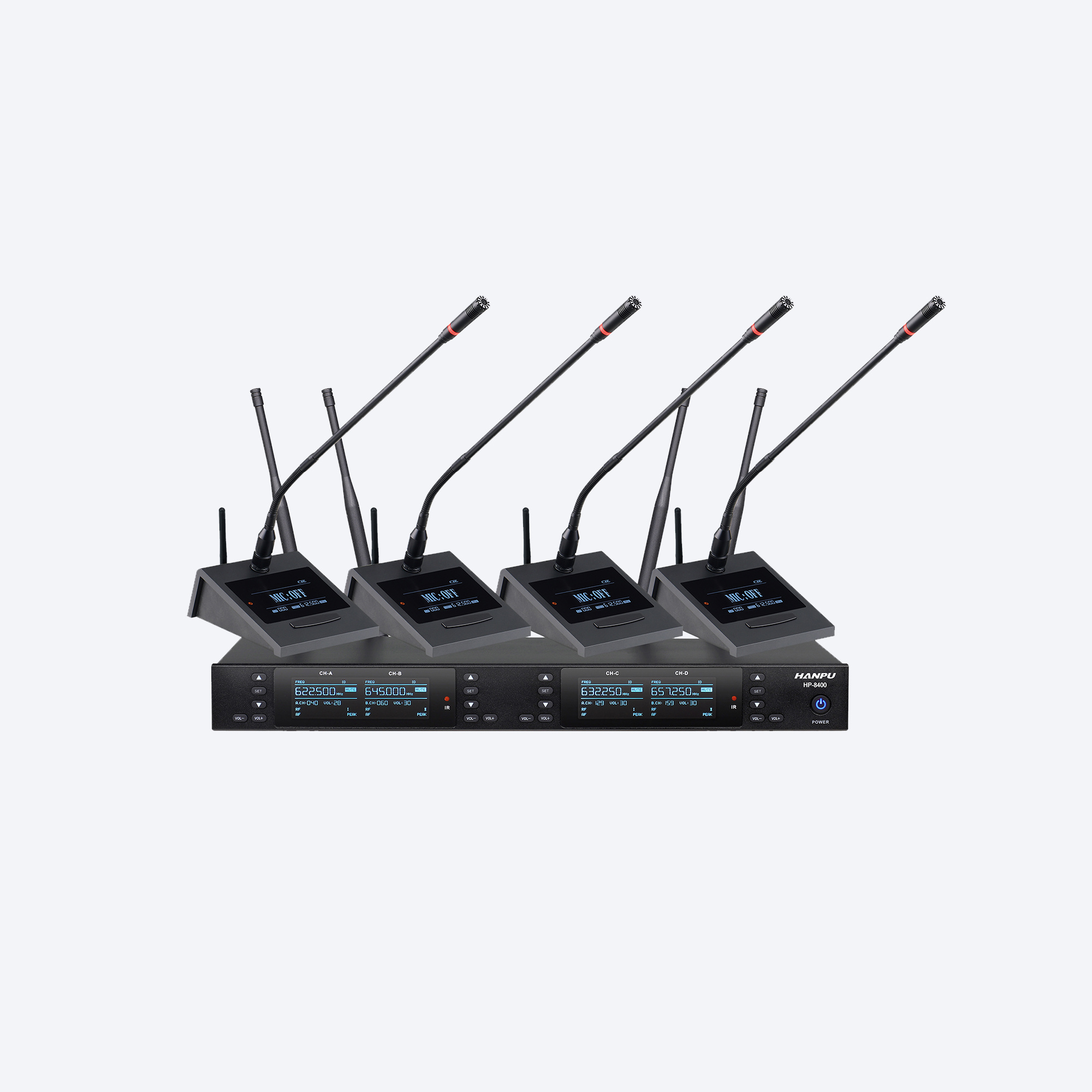

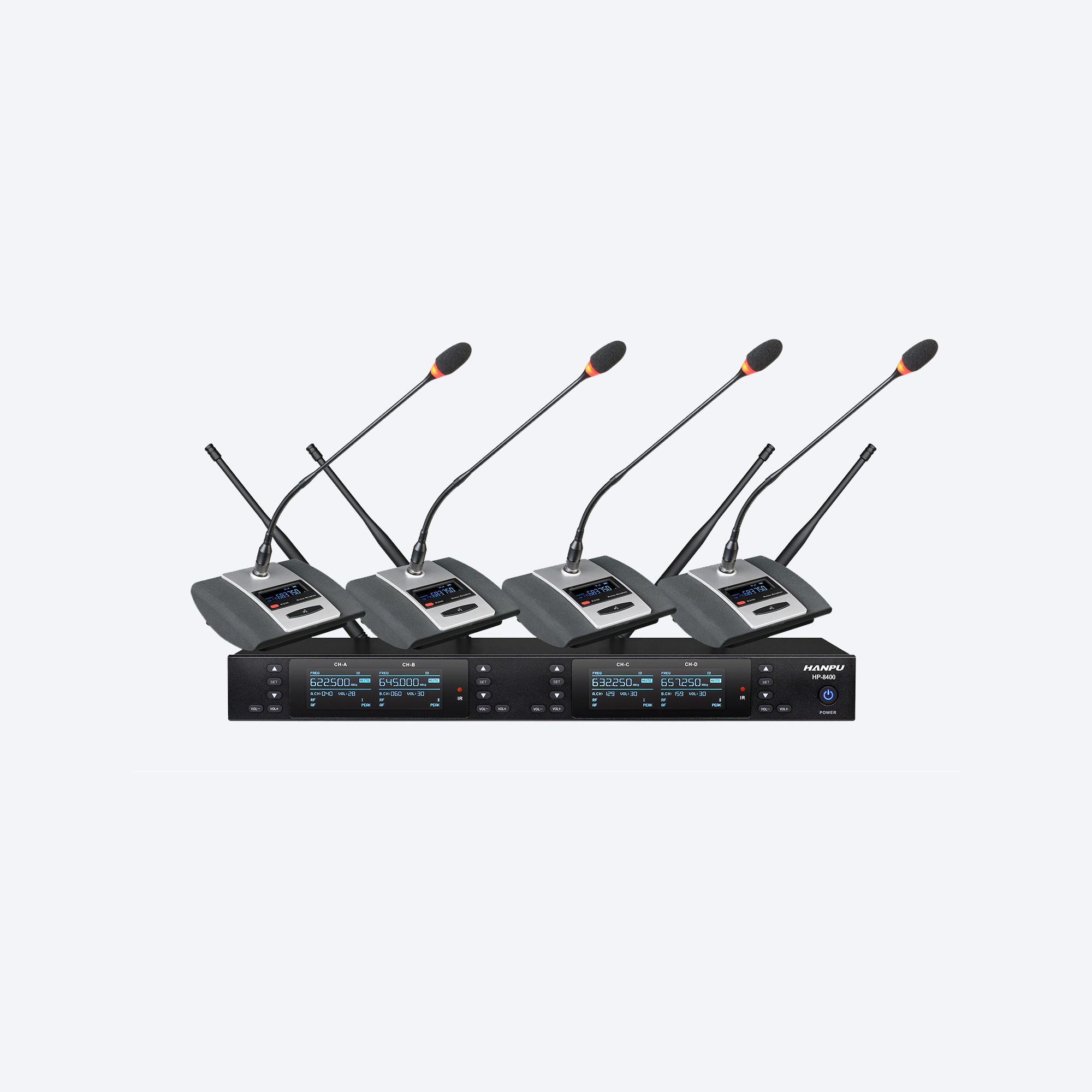

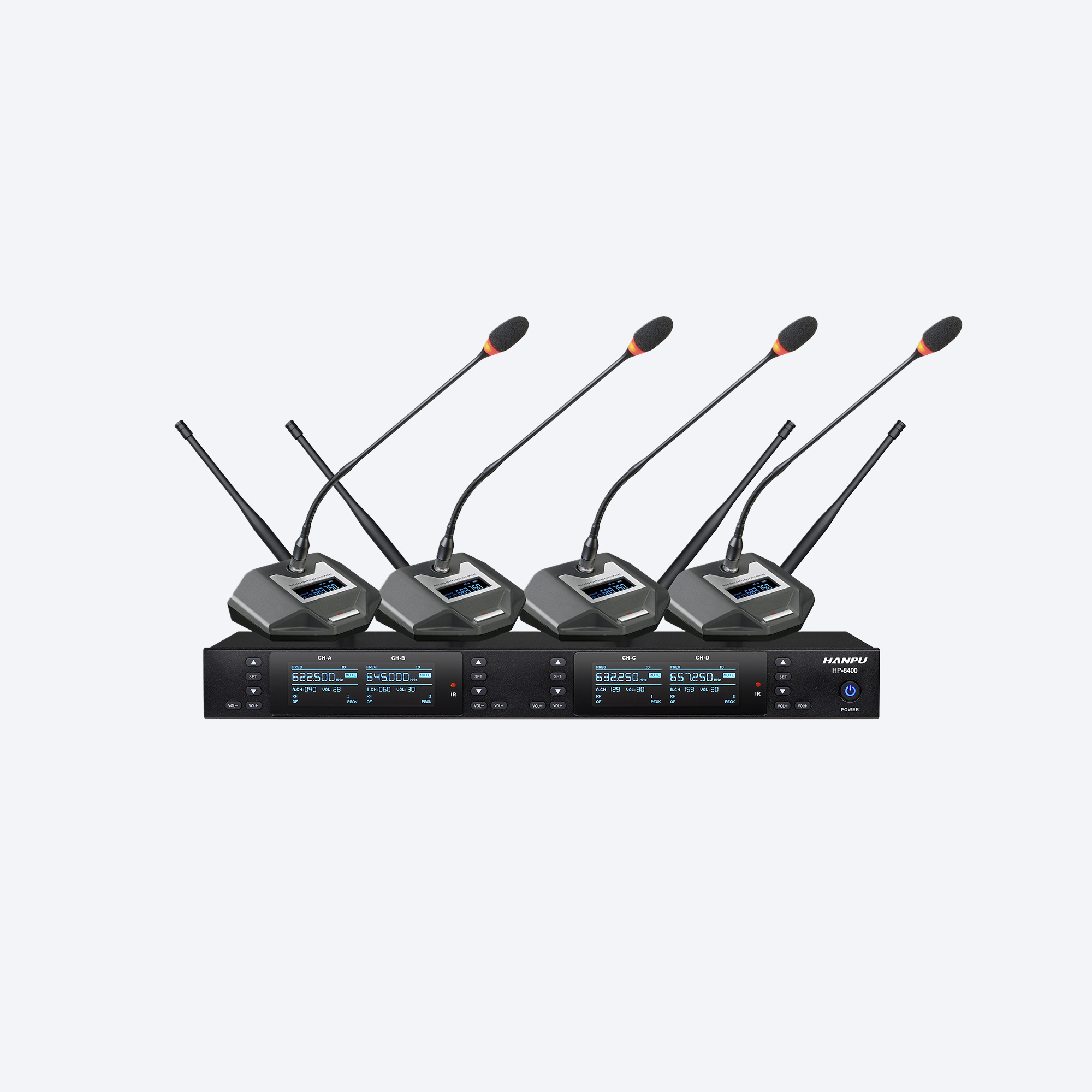

UHF Band One Drag Four Wireless Conference System

NO.: 8400

1. Frequency range 612.5--667.25Mhz 2. Modulation method FM frequency modulation 3. Adjustable number of channels 200 channels 4. Channel spacing 250khz 5. Oscillation mode PLL phase-locked loop frequency synthesis 6. Frequency stability ± 10ppm 7. Dynamic range 100db 8. Frequency response 40-18000Hz 9. Comprehensive signal-to-noise ratio ≥ 110db 10. Comprehensive distortion ≤ 0.1%

Series：

Professional wireless conference microphone

Download:

Enquiry Now

hanputydz@163.com

Keywords:

HANPU

Description
Technical specifications
Connect

1: Using UHF610 to 670 frequency bands effectively avoids interference bands and has strong anti-interference performance.
2: Using advanced PLL phase-locked loop technology, coupled with high-precision quartz crystal and 32-bit microcomputer microcontroller control, the frequency stability is extremely high.
3: Equipped with infrared frequency matching (synchronous transmission and reception frequency), greatly improving the convenience of product use.
4: Equipped with advanced patented RDS digital pilot function, each cat has a different random ID code to eliminate interference and crosstalk.
5: An automatic mute and impact cancellation circuit with three logical relationships. Effectively avoiding the impact sound of power on/off and noise caused by poor signal quality.
6: Equipped with adjustable transmission power and adjustable reception sensitivity (noise reduction depth), the combination of the two can effectively and conveniently control the reception distance.
7: Equipped with one click automatic message selection function, it intelligently and quickly selects clean channels without interference, greatly simplifying the debugging workload in engineering installation and improving work efficiency.
8: The transmitter adopts a dual boost circuit design to ensure that the emission performance will not be affected when the battery voltage drops.
9: The receiver display screen can reflect real-time information such as the battery level of the transmitter.
10: A concise operating interface with minimal adjustable components can completely avoid malfunctions caused by misoperation.
11: High pickup sensitivity and excellent sound quality make your speech or singing effortless and effortless.
12: Can be used by multiple stacked machines without interference or frequency hopping.
13: The use distance is long and can be adjusted arbitrarily. The large dual LCD display screen, with a beautiful and elegant appearance design, is particularly suitable for professional KT V venues, schools, and performances.
system parameter
1. Frequency range 612.5--667.25Mhz
2. Modulation method FM frequency modulation
3. Adjustable number of channels 200 channels
4. Channel spacing 250khz
5. Oscillation mode PLL phase-locked loop frequency synthesis
6. Frequency stability ± 10ppm
7. Dynamic range 100db
8. Frequency response 40-18000Hz
9. Comprehensive signal-to-noise ratio ≥ 110db
10. Comprehensive distortion ≤ 0.1%
11. Working distance of 150m (ideal environment)
12. Working environment temperature -20 ℃/+50 ℃

Technical parameters of the transmitter
1. Frequency range 612.5--667.25Mhz
2. Adjustable number of channels 200 channels
3. Channel spacing 250k
4. Oscillation mode PLL phase-locked loop frequency synthesis
5. Frequency stability ± 10ppm
6. Modulation method FM frequency modulation
7. Harmonic suppression ≥ 70db
8. Maximum modulation degree 75k
9. RF power 10~30mw
10. Frequency response 40-18000Hz
11. Distortion ≤ 0.1%
12. Function display mode LCD
13. Battery size 2x1.5v AA Size
14. Continuation time 8-20 hours (depending on battery type, capacity, and transmission power)

Receiver specifications and parameters
1. Frequency range 612.5--667.25Mhz
2. Receiving method superheterodyne secondary frequency conversion
3. Adjustable number of channels 200 channels
4. Channel spacing 250khz
5. Adjacent channel suppression ≥ 70db
6. Mirror frequency suppression ≥ 80b
7. Oscillation mode PLL phase-locked loop frequency synthesis
8. Frequency stability ± 10ppm
9. Reception sensitivity -100dbm~-68dbm adjustable
8. Frequency response 40-18000Hz
9. Comprehensive signal-to-noise ratio ≥ 110db
10. Comprehensive distortion ≤ 0.1%
11. Audio output 500MV (one 6.35 socket mixed output, one Karon balanced output)
12. Output impedance XLR connector 200 Ω 1/4 connector 1K Ω
13. Power supply specification DC12V/1A
